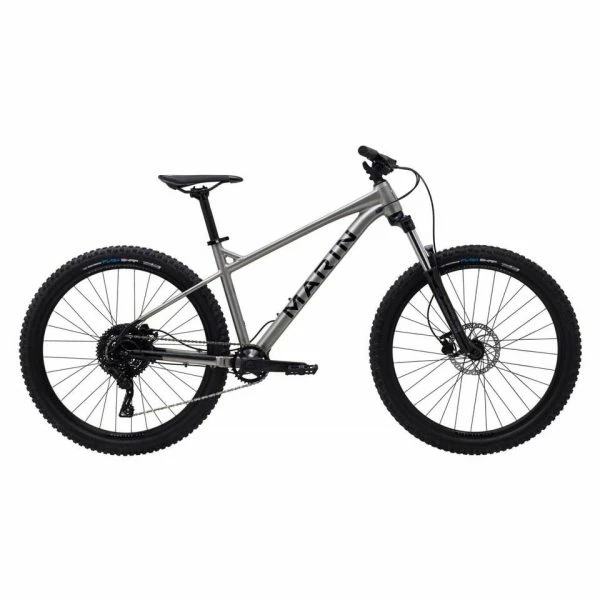

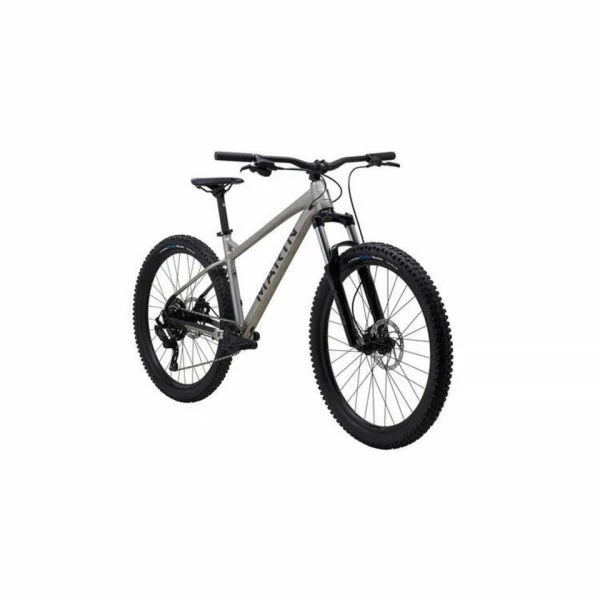

MARIN SAN QUENTIN 1 2022

Cadre: Series 2 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB

Fourche: SR Suntour XCM32 Boost 15x110mm Spacing, 120mm Travel, Lock Out, 27.5″, Bolt-On Thru-Axle

Jantes: Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible

Moyeu arrière: Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, 141mm Width, 6-Bolt Disc, 32H, Shimano Standard Freehub Body

Moyeu avant: Forged Alloy, 110x15mm, Sealed Cartridge Bearing, 6-Bolt Disc, 32H

Rayons: 14g Black Stainless Steel

Pneus: Vee Tire Co, Flow Snap, 27.5×2.6″, MPC Compound, Wire Bead
Dérailleur: MicroShift Advent, 9-Speed, with Clutch

Shifter: MicroShift Advent, 9-Speed with Bearing Movement
Pédalier: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Boîtier de pédalier: Sealed Cartridge Bearing, Square Taper
Chaine: KMC X-9
Cassette: Sunrace, 9 Speed, 11-46T
Freins: Tektro M275 Hydraulic Disc, 180mm Rotor
Levier de frein: Tektro M275 Hydraulic Disc
Cintre: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEM: Marin 3D Forged Alloy, 45mm
Grips: Marin MTN, Closed End
Jeu de direction: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”
Tige de selle: Marin Alloy, 30.9mm
Selle: Marin Speed Concept
Pédales: Nylon plateforme
